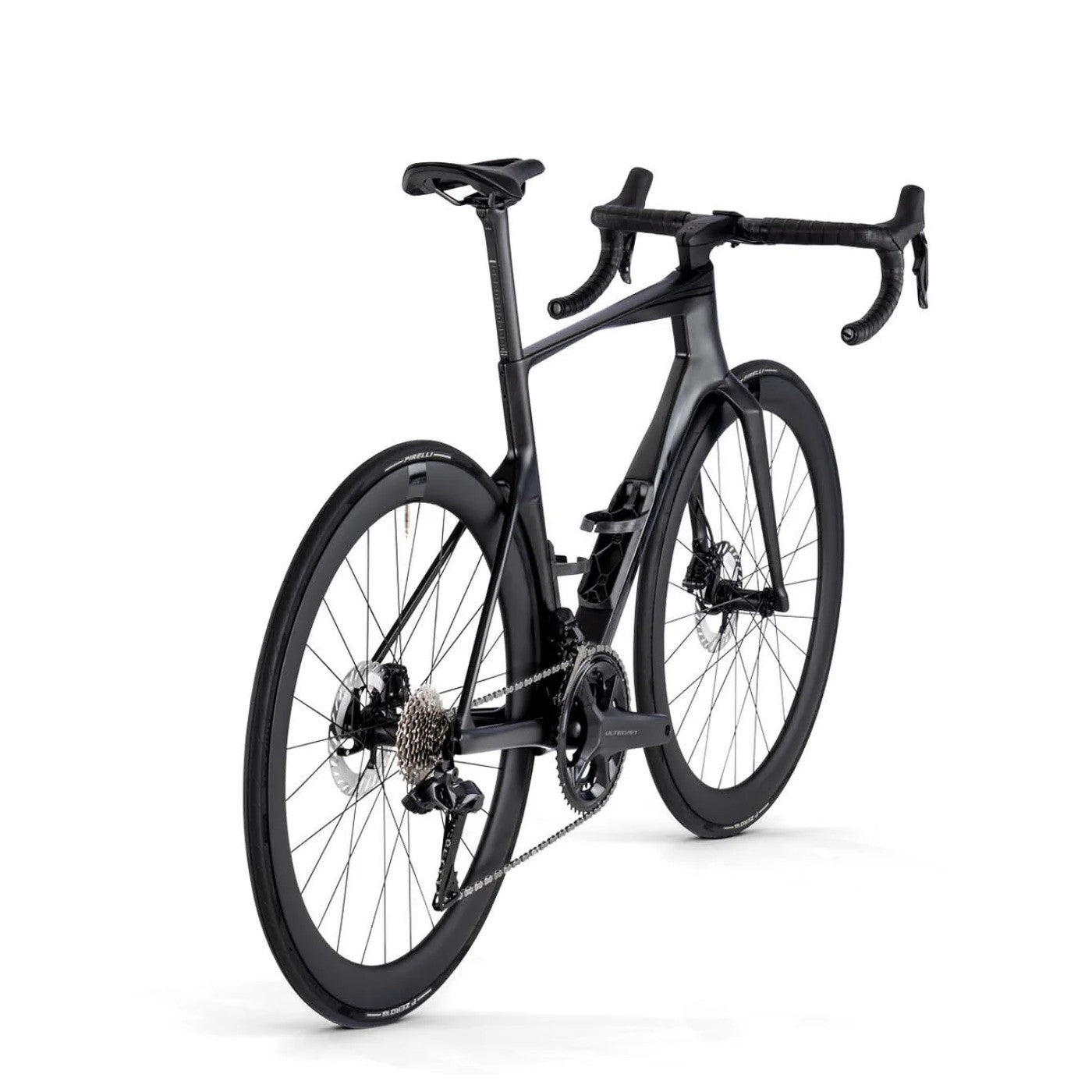

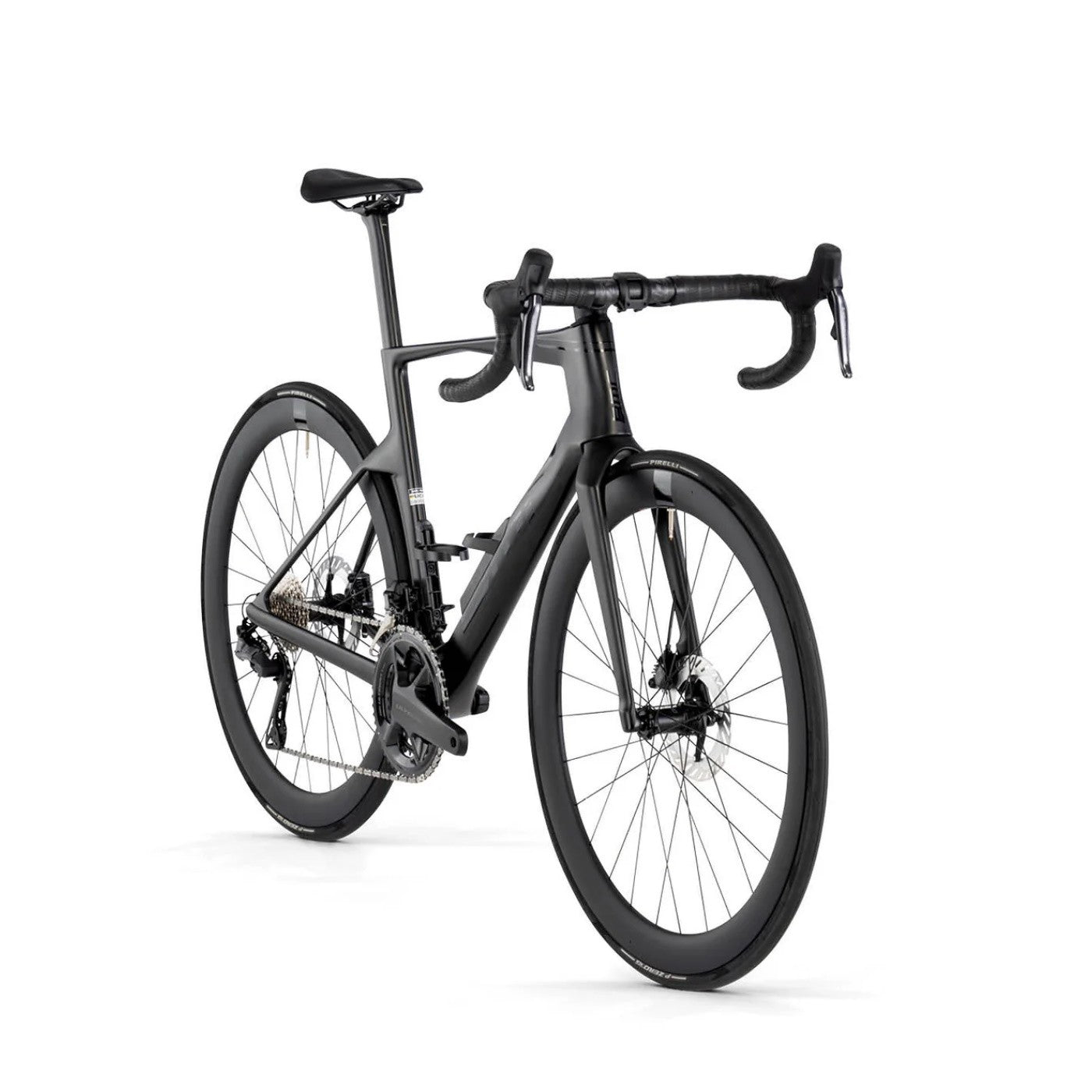

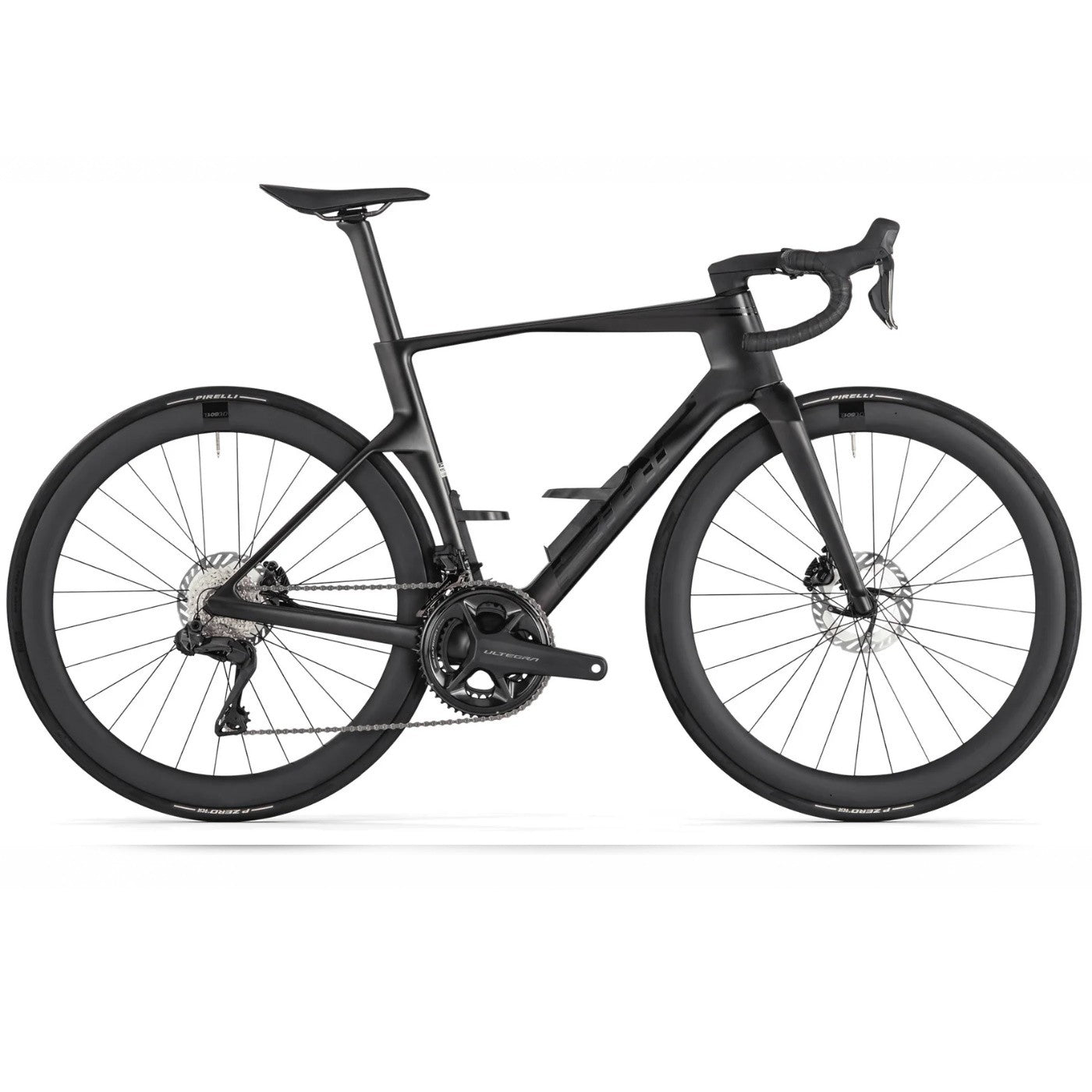

Bicicletta Teammachine R 01 Four

SKU: 30005511  |  Barcode: 7630906505014
€7.649,15 €8.999,00
Colore
Taglia

Description

Forgiata sui pendii delle Alpi svizzere. Temprata sui ciottoli delle classiche di primavera, perfezionata nelle tappe dei Grandi Giri. Sviluppata in collaborazione con Red Bull Advanced Technologies, la Teammachine R non è solo una bici da corsa. La Teammachine R 01 FOUR è dotata della trasmissione Shimano Ultegra Di2 con powermeter, ruote in carbonio CRD-501 e ICS2 Integrated Cockpit Design di BMC.

Specifications
  • Forcella
    Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
  • Reggisella
    Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
  • Sella
    Fizik Argo Vento R3 | 140mm
  • Ruote
    CRD-501 Carbon | Tubeless Ready | 50mm
  • Gomme
    Pirelli P Zero Race TLR | 26mm
  • Attacco
    BMC ICS2 | Integrated Cockpit System Technology
  • Piega
    Easton EC70 SL Carbon or Easton EC90 SLX Carbon
  • Cambio Posteriore
    Shimano Ultegra Di2 RD-R8150
  • Cambio Anteriore
    Shimano Ultegra Di2 FD-R8150
  • Comandi
    Shimano Ultegra Di2 ST-R8170
  • Cassetta
    Shimano Ultegra CS-R8100 11-30
  • Catena
    Shimano CN-M8100
  • Guarnitura
    Shimano Ultegra FC-R8100 52-36 4iiii Precision 3+ Power Meter (Left Side)
  • Freni
    Shimano Ultegra BR-R8170

Geometria
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 367 377 386 392 401 409
Stack 506 530 550 565 584 608
Bar Drop 127 127 127 127 127 127
Bar Reach 70 70 70 70 70 70
Bar Width 400/436 400/436 400/436 400/436 400/436 400/436
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 369 369 369 369 369 369
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 184 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 422 464 491 509 530 555
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Standover Height 717 752 779 797 817 843
Stem Angle -12 -12 -12 -12 -12 -12
Stem Length 90 100 100 110 110 120
Top Tube 515 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 1000 1015 1030
