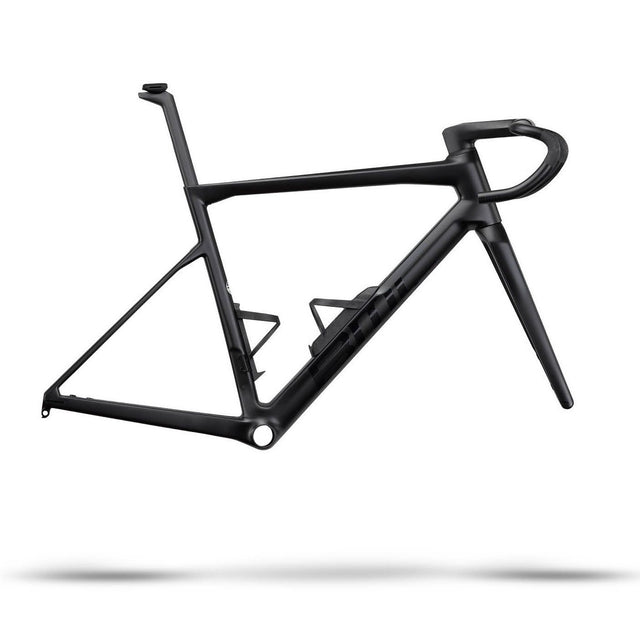

Telaio SLR 01 Mod

SKU: 30003530 | Barcode: 7630027890570

€3.299,00 €5.299,00

Colore

Stealth Team White/Neon Red

Taglia

47 51 54 56 58 61

Product variants

Description

Specifications

Forcella

Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Reggisella

Teammachine SLR 01 Premium Carbon D-Shaped Seatpost | 15mm Offset
Piega

ICS Carbon | One-Piece Full Carbon Cockpit

Geometria

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	367	377	386	392	401	409
Stack	506	530	550	565	584	608
Bar Drop	127	127	127	127	127	127
Bar Reach	70	70	70	70	70	70
Bar Width	400/436	400/436	400/436	400/436	400/436	400/436
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	369	369	369	369	369	369
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	422	464	491	509	530	555
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Standover Height	717	752	779	797	817	843
Stem Angle	-12	-12	-12	-12	-12	-12
Stem Length	90	100	100	110	110	120
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	1000	1015	1030
